Sofar Launched BESS in Pakistan, PowerMagic & PowerMaster
SOFAR BESS adopts the industry’s first co-flow liquid cooling + intelligent air-cooling heat dissipation design, which can reduce heat dissipation loss by more than 30%. The temperature uniformity is better, and the measured temperature difference of the battery core is less than 2.5℃, which increases the battery life by 14%. Compatible with 320Ah large battery cell design, the energy density is higher, and the capacity of a single cell can be expanded to 3.93MWh, which can significantly reduce the initial investment cost and the whole life cycle cost of electricity. The 40-foot assembly solution reduces the floor space by more than 30%. At the system level, a three-level linkage of cell-level gas firefighting + cabin-level gas firefighting + water firefighting, as well as a “3+2” safety system protection strategy of combustible gas emission + explosion vent design are adopted to fully ensure the safety of the energy storage system.
PowerMagic, BESS (Battery Energy Storage System)
Lower LCOS
- All-in-one design, High energy density
- Plug-and-play design ,quick installation & less cost
Efficient & Flexible
- Modular design supports parallel connection and easy system expansion
- Grid-On/Off auto-switch function, easy O&M
Ultimate Safety
- 3+2 protection design enables ultimate safety
- Electricity and liquid separation reduces system risks
Smart Management
- Integrated EMS enables multi-scenario energy management
- Fast state monitoring and faults record enables pre-alarm and faults locating

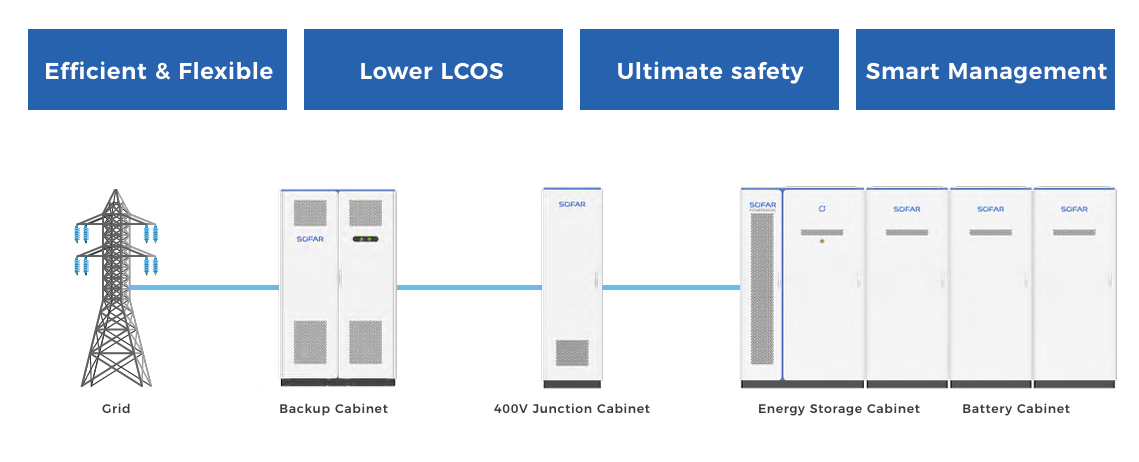

SOFAR Energy Storage Cabinet adopts a modular design and supports flexible expansion of AC and DC capacity; the maximum parallel power of 6 cabinets on the AC side covers 215kW-1290kW; the capacity of 3 battery cabinets can be added on the DC side, and the capacity expansion covers 2-8 hours. It also supports automatic and off-grid switching to achieve efficient and flexible applications. Safety designs such as water and electricity separation, three-level fire protection + explosion venting + exhaust, liquid cooling + dehumidification design, all ensure the safety of the energy storage system.The integrated EMS function enables intelligent monitoring and quick response off-grid. The overall system is easy to maintain and install, allowing for easy operation and maintenance. Sofar Now listed in BNEF Tier1 for Energy storage system.
-

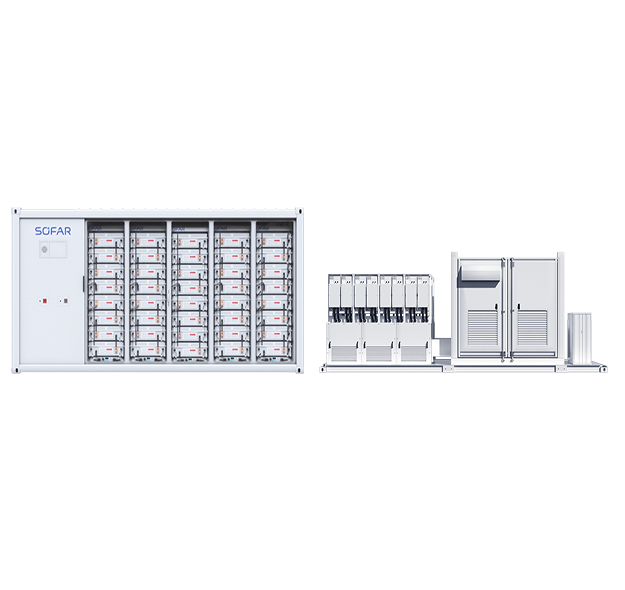

PowerMaster, BESS (Battery Energy Storage System)
Utility ESS Solution -PowerMaster is an integrated solution created by SOFAR through full-stack self-research and integrating power electronics, electrochemistry and power grid technology. It consists of PCS, booster integrated machine and BESS. It has features such as Less LCOS, Efficient & Flexible, Ultimate Safety, and Smart Management.Air-Liquid Mixing Cooling
Liquid cooling with uniform flow of coolant + Smart air cooling
Modular Design
Minimal operation and maintenance
One rack for one management
Automatic coordination control, to ensure full power operation of PCS
Suitable for Large Cells
Higher Energy Density 3.93MWh
3+2 Security System
Cell-Level Fire Extinguishing Gas Technique +
Cabin-Level Fire Extinguishing Gas Technique +
Water Firefighting Three-Level Linkage
Combustible Gas Emission + Explosion Venting Design
Combined Design
A 40-foot Combined scheme can be used to reduce the floor space by more than 30%.
High Conversion Efficiency in the Full Power Range
Smart coordination strategy to ensure high efficiency performance of PCS full power-range
