Is there any device for on grid inverters to convert Hybrid Solar
The answer is YES.
- No Battery Terminals: Standard on-grid inverters lack the internal charge controllers and physical ports required to connect or manage storage batteries.
- Safety & Anti-Islanding: On-grid inverters are legally and technically required to shut down during a utility power outage to prevent backfeeding electricity into the dead grid. A small gadget or zero-export device cannot safely bypass this restriction to provide backup power.
How to Actually Get Backup Power from an On-Grid Setup
To add battery backup or transition your system, you must use one of these two methods: - Replace the Inverter: Swap out your current on-grid inverter for a true hybrid inverter that supports battery banks.
- Add an AC-Coupled System or External UPS/Battery Setup: Run a secondary off-grid or hybrid setup alongside your existing array, or use specialized conversion services like SolCare to reconfigure your hardware
Option 1: Inverter Replacement (DC-Coupled Solution)
For system capacities below 500 kW, replacing the existing on-grid inverter with High-Voltage (HV) Hybrid Inverters is generally the most cost-effective approach.
For instance, using SOFAR 166 kW Hybrid Inverters and integrating paired battery storage, a recommended system configuration includes:
-
Inverters: 3 × 166 kW Hybrid Inverters (498 kW total capacity)
-
Battery Storage: 3 × 257 kWh Battery Cabinets (771 kWh total capacity)
When to Choose DC-Coupled:
-
Greenfield Installations: Ideal for new solar-plus-storage projects built from scratch to maximize Round-Trip Efficiency (RTE).
-
Inverter Upgrades: Highly practical and economical when replacing existing, legacy on-grid inverters.
Note: Implementing an AC-coupled solution with fast switching times for systems under 500 kW is typically more expensive than a DC-coupled design.
Option 2: AC-Coupled System Addition
For larger installations exceeding 500 kW, adding an AC-coupled storage system to the existing on-grid infrastructure provides greater feasibility and integration flexibility.

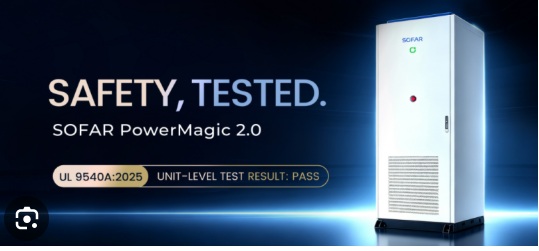

For example, for a 750 kW system, you can integrate the SOFAR PowerMagic 2.0 utility system using a 5-cabinet configuration:
Configuration: 5 × PowerMagic 2.0 Cabinets
Capacity Per Cabinet: 125 kW Power / 261 kWh Energy
Total Storage System: 625 kW / 1,305 kWh
For residential applications, replacing the existing on-grid inverter with a hybrid inverter and adding custom battery storage remains the most viable approach. While retrofitting existing on-grid inverters with backup modules is technically possible, current solutions are not yet cost-effective; direct AC-coupling for residential systems may become more commercially feasible as technology advances. Like Atmoce launch such solution in Pakistan.
for more information regarding AC coupled storage system you may contact Mr. Jamil Riaz at +923214067276
